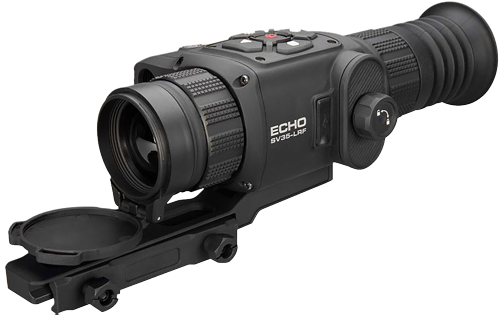

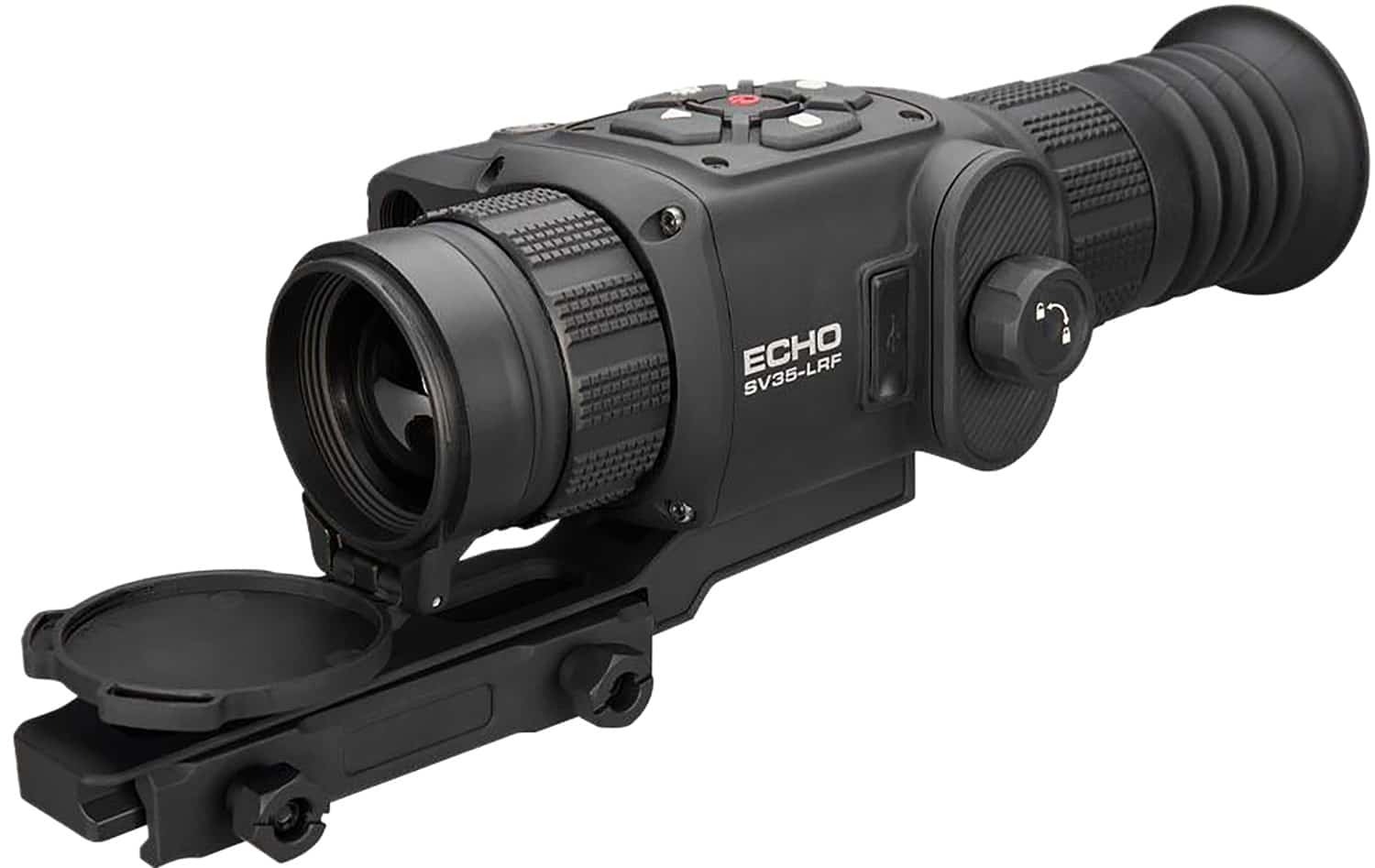

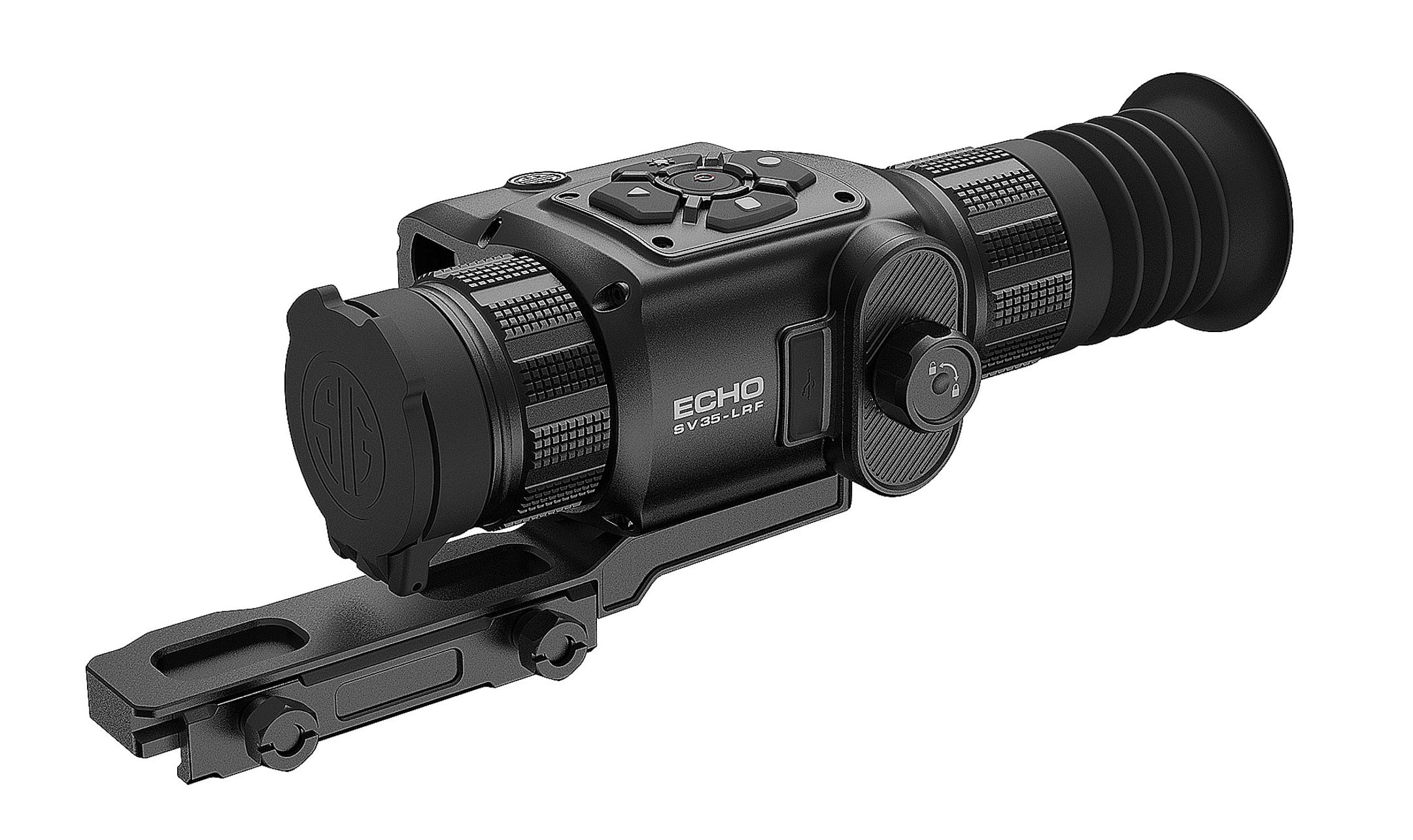

SIG SAUER ECHO SV35-LRF Thermal Sight 1.5-12x35mm

The SIG SAUER ECHO SV35-LRF is a thermal weapon sight combining a 640x512 LWIR thermal core with 1.5-12x magnification and BDX 2.0 functionality. An integrated 1000-yard laser rangefinder, onboard environmental sensors, and a cantilever Picatinny rail mount support an integrated sighting setup.

The sight provides selectable color palettes, rechargeable 18650 lithium-ion battery operation, and media recording capabilities. Its 35mm objective and 50 Hz frame rate support thermal imaging across a range of viewing conditions.

Key Specifications

• The thermal core provides 640x512 resolution with 12-micron pixel size and a 50 Hz frame rate.
• The magnification range is 1.5x to 12x for flexible viewing.
• The sight uses a 35mm objective.
• The thermal core is rated at less than or equal to 20mK sensitivity.
• The system is BDX 2.0 enabled and supports Applied Ballistics Ultralight features according to the supplied product data.
• An integrated laser rangefinder provides a listed range of 1000 yards.
• The sight uses rechargeable, removable 18650 lithium-ion batteries.
• The listed operating time is 11 hours on a single charge.
• The sight includes a cantilever Picatinny rail mount.
• The finish is matte black, and the listed product weight is 1.9 pounds.

With its high-resolution thermal core, broad magnification range, integrated ranging capability, and BDX 2.0 support, the ECHO SV35-LRF brings multiple sighting and environmental tools into one streamlined optic platform.
