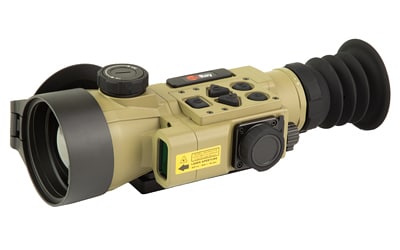

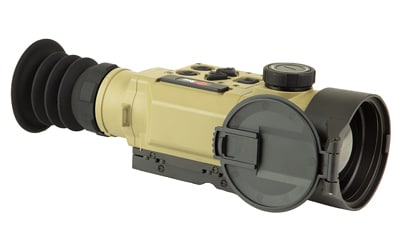

InfiRay Hybrid Compact HCH50R 3.5x 640×480 Thermal Optic

The InfiRay Outdoor Hybrid Compact HCH50R is a thermal optic designed for use as a dedicated sight, thermal clip-on, or handheld monocular. Its 640×480 thermal sensor, 3.5x native magnification, and 50mm objective support detailed observation in a compact platform.

The optic combines a 1440×1080 AMOLED display with low-latency image processing, an integrated laser rangefinder, ballistic calculator, onboard recording, and 64GB of storage. A manual focus system, multiple viewing palettes, and USB-C connectivity add practical flexibility for field use.

Key Specifications

• The thermal sensor provides 640×480 resolution for detailed thermal imaging.
• The optic offers 3.5x native magnification for a defined viewing perspective.
• The objective uses a 50mm F/0.9 lens for thermal imaging performance.
• The sensor uses a 10 µm pixel size for high pixel density.
• The display is a 1440×1080 AMOLED panel.
• The system provides 60/30 Hz frame-rate operation as listed in the product data.
• The Fast Engine architecture has 15 ms low-latency processing.
• The optic includes an integrated laser rangefinder.
• Built-in recording uses 64GB of internal storage.
• The unit supports dedicated sight, clip-on, and handheld monocular use.

With its high-resolution thermal imaging, integrated ranging functions, recording capability, and adaptable operating modes, the HCH50R is a versatile option for users who want one compact optic for observation and sighting applications.
