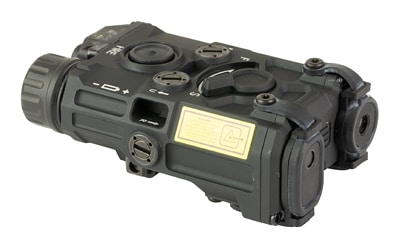

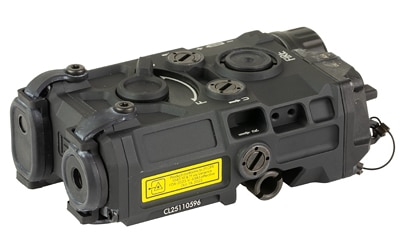

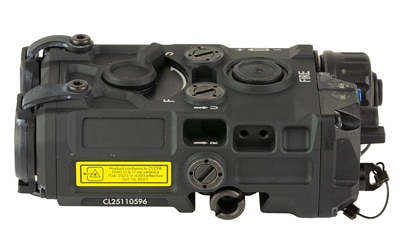

EOTECH OGL-C On-Gun Laser Green/IR Black

The EOTECH OGL-C is a commercial-power on-gun laser with co-aligned green visible and IR aiming lasers, plus a dedicated IR illuminator. Its machined aluminum housing, Picatinny mounting interface, and included Modlite switch provide a compact, adaptable aiming and illumination solution for compatible platforms.

The green visible laser supports daylight and low-light use, while the IR aiming laser and illuminator support night-vision applications. The illuminator uses a VCSEL diode and a sliding lever for spot-to-flood adjustment, and the unit includes tethered protective caps and pattern generators.

Key Specifications

• The finish is black for a subdued appearance.
• The housing is made from machined aluminum for a durable, compact package.
• The aiming system includes green visible and IR lasers with optical pairing for simplified zeroing.
• The IR illuminator uses a VCSEL diode and adjusts from spot to flood.
• The visible aiming laser wavelength is 515 nm (+15/-5 nm).
• The IR aiming laser wavelength is 830 nm (±10 nm).
• The IR illuminator wavelength is 850 nm (±10 nm).
• The power source is a single CR123 lithium battery with up to 9 hours of continuous runtime.
• The mounting interface is Picatinny and the unit is designed for top-rail mounting.
• The package includes a Modlite 7 switch, Crane-type laser port, tethered protective caps, and pattern generators.

With integrated visible, IR, and illumination functions in one adaptable housing, the EOT-OGL-C-B is designed for users who value straightforward controls, compact equipment, and dependable compatibility with Picatinny-mounted setups.
