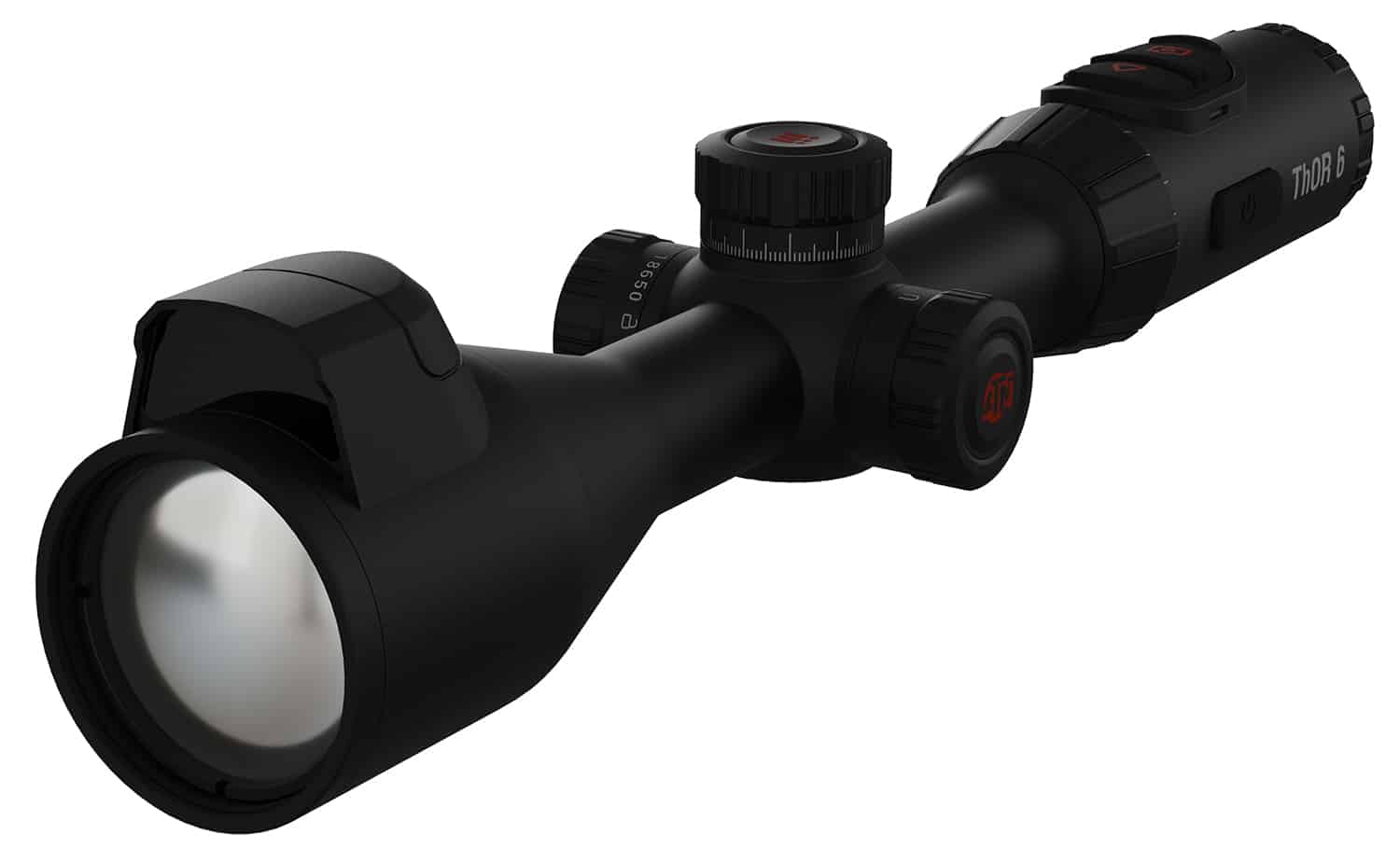

ATN ThOR 6 Elite LRF Thermal Scope 640×512 3-24x

The ATN ThOR 6 Elite is a thermal riflescope with a 640x512 sensor, 3-24x variable magnification, and an integrated laser rangefinder. Its digital features include a ballistic calculator, Picture-in-Picture viewing, Wi-Fi connectivity, and onboard video recording for field observation and shooting applications.

The 12um VOx uncooled focal plane array is paired with a 50 mm germanium lens and 15mK thermal sensitivity. Step and smooth zoom, multiple color palettes, selectable reticles, and manual focus provide flexible image presentation across changing conditions.

Key Specifications

• The thermal sensor provides 640x512 resolution using a 12um VOx uncooled focal plane array.
• The scope offers variable magnification from 3x to 24x with step and smooth zoom.
• The optical system uses a 50 mm germanium lens with an f/1.0 aperture.
• The display is a 0.49-inch OLED with 1920x1080 resolution.
• The built-in laser rangefinder measures distances up to 1,000 meters with stated accuracy of plus or minus 1 meter.
• The scope includes Picture-in-Picture, a ballistic calculator, and zeroing freeze functions.
• Video and audio recording use 64 GB of internal storage, with recoil-activated video support.
• Power comes from one internal 18650 battery and one replaceable rechargeable 18650 battery, with approximately 9 hours of stated battery life.
• The housing is made from magnesium alloy and carries an IP67 rating.
• The unit measures 16.93 x 3.35 x 3.15 inches and weighs approximately 1.89 pounds.

With integrated ranging, connected-device support, onboard recording, and a high-resolution thermal sensor, the ThOR 6 Elite brings a broad set of observation and aiming tools into one scope. Its rugged housing, flexible zoom system, and configurable display are suited to users who want detailed thermal imaging with integrated digital functionality.
