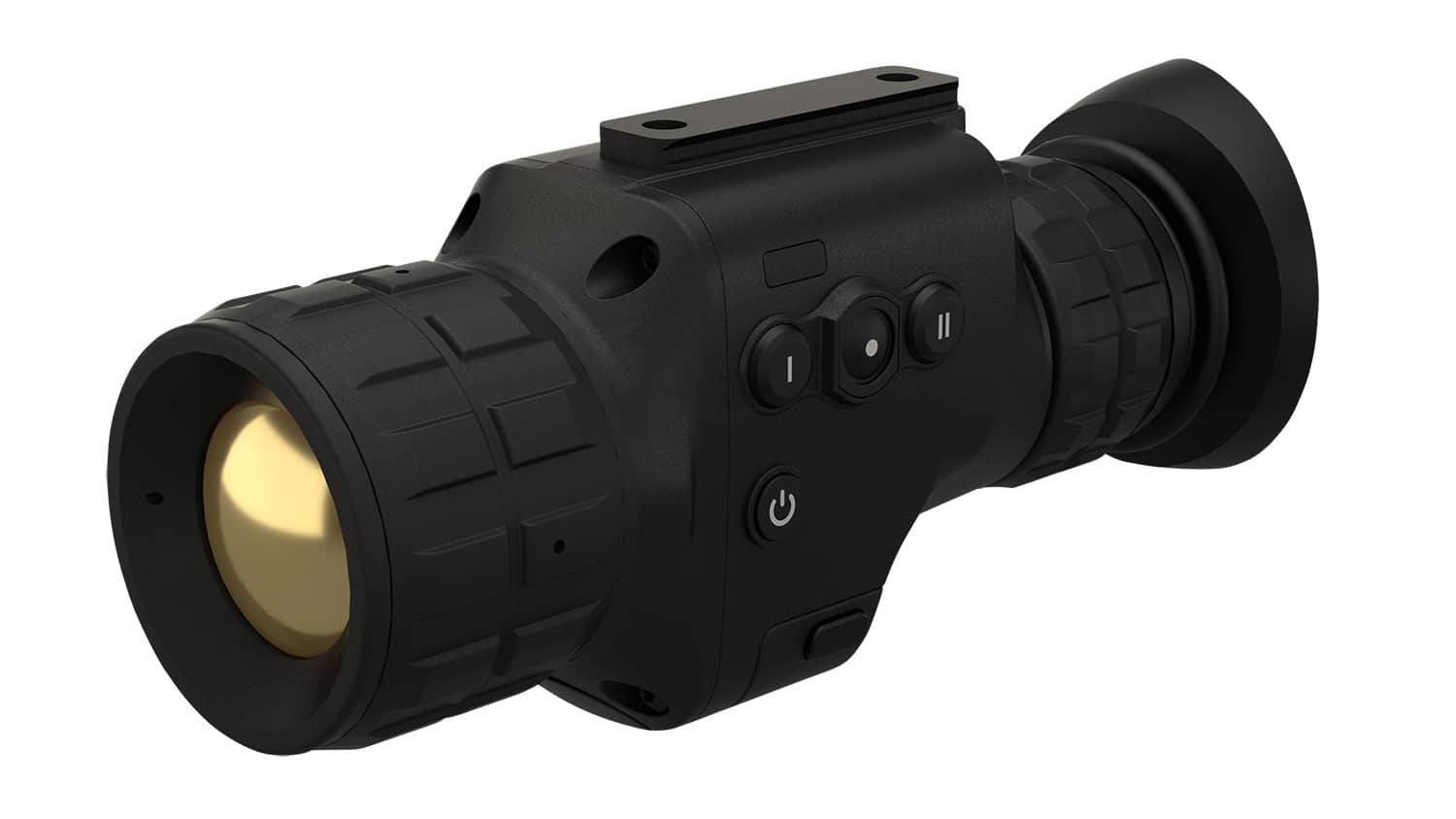

ATN ODIN LT 640 Thermal Viewer 3-12x35mm

The ATN ODIN LT 640 is a compact thermal viewer designed for handheld observation or mountable use. Its ATN Obsidian Core LT delivers 640x480 resolution at 60 frames per second, while the 3-12x magnification range supports flexible viewing across changing distances. The unit includes a soft carry bag, battery, eyecup, manual, and lens cloth.

Key Specifications

• The thermal sensor resolution is 640x480 at 60 fps with 12 µm pixel pitch.
• The magnification range is 3-12x.
• The objective lens measures 35mm.
• The display resolution is 1280x960 pixels.
• The field of view is 12.6 x 9.4 degrees.
• The available color modes are White Hot and Black Hot.
• The eye relief measures 25mm.
• The housing is rated weather resistant.
• The listed dimensions are 5.71 x 2.8 x 2.01 inches, or 145 x 71 x 51mm.
• The weight is 342g, or 12.06 oz.

With its compact one-hand form, flexible 3-12x viewing range, and multiple mounting options, the ODIN LT 640 is well suited to observation tasks that call for thermal capability in a portable package. The included accessories support convenient transport and routine use.
