ATN ODIN LT 640 2-8x25mm Thermal Viewer
$2,695.00
Compact ATN thermal monocular with 640×480 resolution, 2-8x magnification, a 25mm lens, multi-reticle display, and handheld or mountable use.

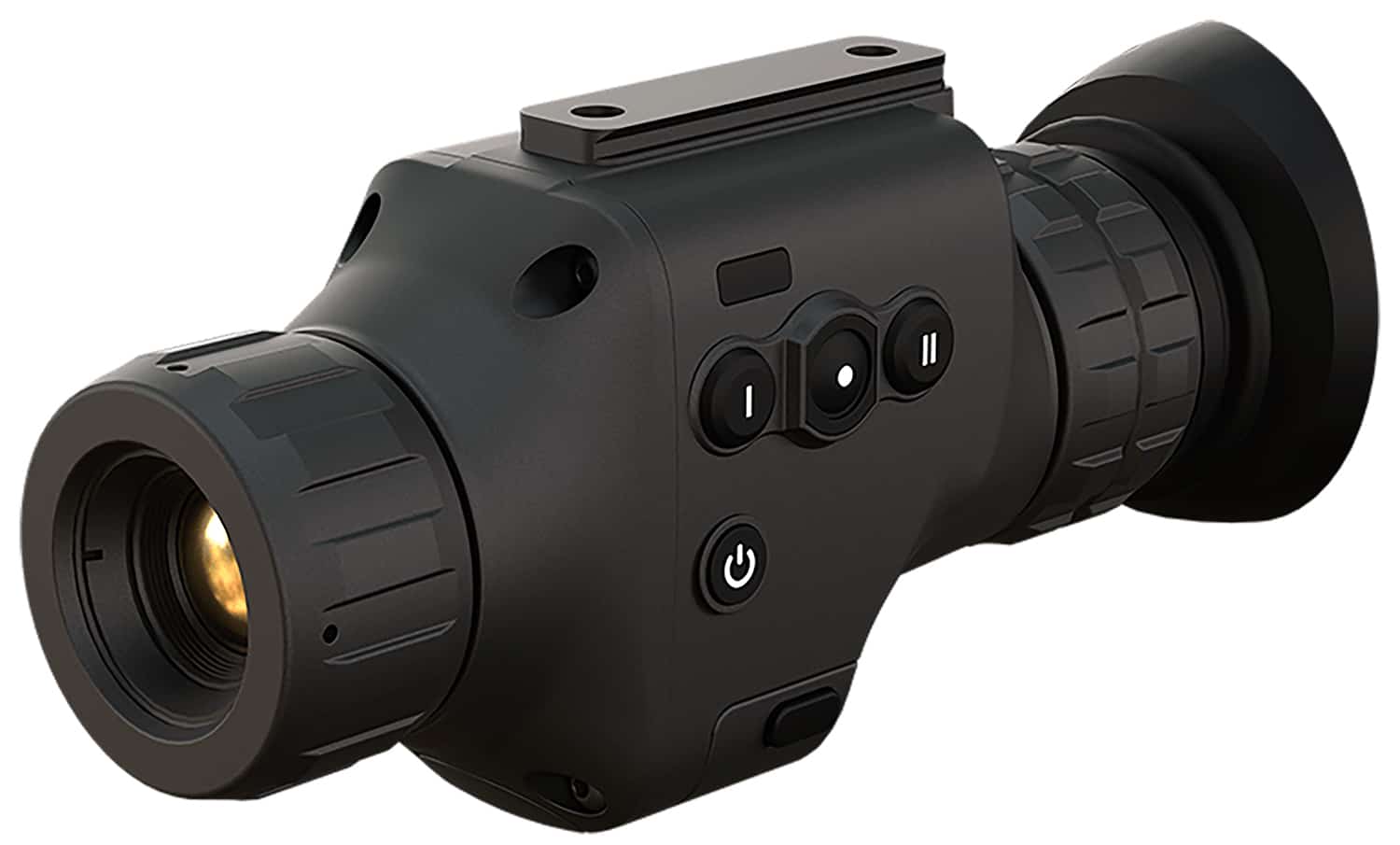

The ATN ODIN LT 640 is a compact thermal monocular designed for handheld or mounted observation. It combines a 640x480 thermal resolution, 2-8x magnification, and a 25mm lens in a one-hand-friendly format, with multi-reticle functionality and support for head or helmet mounting.
The package includes a soft carry bag, battery, eye cup, manual, and lens cloth.
Key Specifications
- The thermal resolution is 640x480 with a 60 fps frame rate and 12 um pixel pitch.
- The magnification range is 2-8x for adaptable observation.
- The objective lens measures 25mm.
- The field of view is 17.6 x 13.2 degrees.
- The display resolution is 1280x960 pixels.
- Eye relief measures 25mm.
- The viewer uses White Hot and Black Hot color modes.
- Power comes from one CR123A battery, with an optional rechargeable battery available.
- Battery life is rated at 2.5 hours with the listed battery, or up to 5 hours with the optional rechargeable battery.
- The unit weighs 285g and measures 5.16 x 2.8 x 1.81 inches.
With its compact dimensions, versatile mounting options, and detailed thermal imaging system, the ODIN LT 640 provides a practical observation platform for users who value portability and clear viewing in changing conditions.
Related Videos:
Additional information
| Upc | 658175123729 |
|---|---|
| Manufacturer | ATN |
| Manufacturer part number | TIMNODN625X |
| Focus range | 1250 yds |
| Magnification | 2-8x |
| Resolution | 640×480 |
