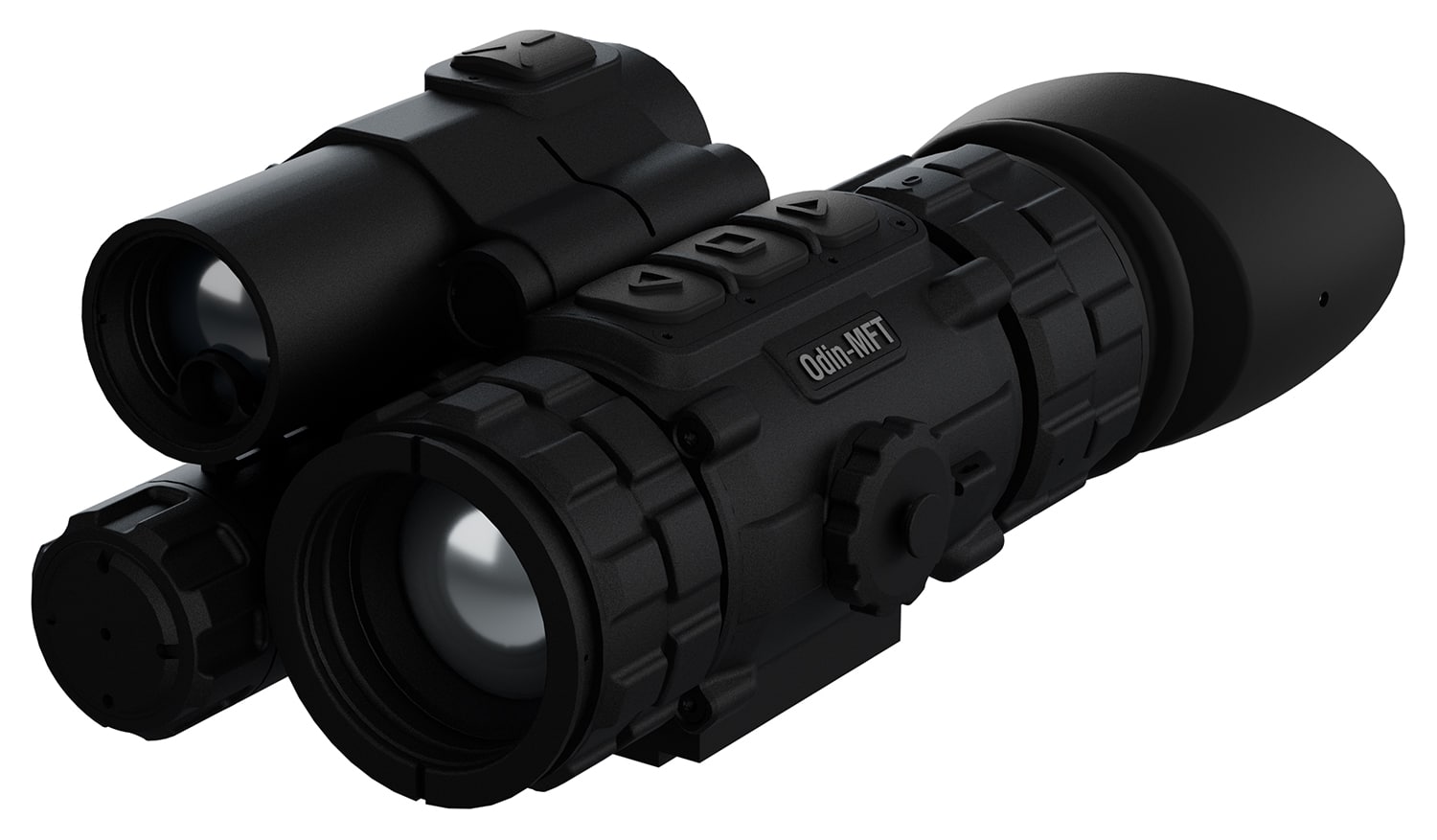

ATN Odin 6 MFT 640×480 1-8x Thermal Optic with LRF

The ATN Odin 6 MFT is a multi-functional thermal optic designed for handheld, helmet-mounted, clip-on, or mounted use. Its 640x480 thermal sensor, 1-8x magnification, and integrated laser rangefinder provide adaptable observation and ranging in changing conditions.

The optic uses a 12µm VOx uncooled focal plane array with a 50Hz refresh rate and thermal sensitivity of ≤15mK NETD. A 25mm germanium lens, 1280x1024 OLED display, digital zoom, and multiple viewing features support detailed thermal imaging. The built-in laser rangefinder measures distances up to 1000 meters with stated accuracy of ±1 meter.

Key Specifications

• The thermal sensor provides 640x480 resolution for detailed thermal imaging.
• The optic offers 1-8x magnification with 1x, 2x, 4x, and 8x digital zoom settings.
• The objective system uses a 25mm F/1.0 germanium lens with manual focus adjustment.
• The detector uses a 12µm VOx uncooled focal plane array.
• The system provides a 50Hz refresh rate for smooth image updates.
• Thermal sensitivity is rated at ≤15mK NETD.
• The horizontal and vertical field of view measures 17.5° x 13.2°.
• The stated thermal detection range reaches 1700 meters.
• The integrated laser rangefinder reaches 1000 meters with stated accuracy of ±1 meter.
• The display provides 1280x1024 OLED resolution with picture-in-picture support.

Integrated video and audio recording, 64GB of internal storage, USB Type-C connectivity, and recoil-activated video support add practical data-capture capability. The magnesium-alloy housing is rated IP67, while multiple mounting interfaces and selectable operating modes let the Odin 6 MFT adapt to a wide range of observation setups.
