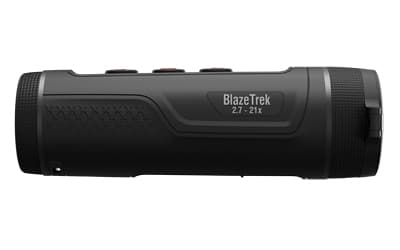

ATN Blaze Trek 325 Thermal Monocular 384×288

The ATN Blaze Trek 325 is a thermal imaging monocular with a 384x288 sensor, 12 µm pixel size, and 50 Hz refresh rate. Its 2.7-21x magnification range, AMOLED display, and five selectable color modes support thermal observation in a compact, portable format.

Built-in video recording, still-image capture, Wi-Fi connectivity, and app support provide options for documenting and managing observations. The integrated rechargeable lithium-ion battery and IP67 rating add practical utility for outdoor use.

Key Specifications

• The thermal sensor provides 384x288 resolution with a 12 µm pixel size and 50 Hz refresh rate.
• The magnification range is 2.7-21x for flexible viewing.
• The sensor has a NETD rating of <25mK for sensitivity to temperature variations.
• The AMOLED display provides 800x600 resolution.
• The field of view measures 10.9° x 8.2°.
• The monocular provides 15 mm of eye relief.
• Available color modes include White Hot, Black Hot, Rainbow, Iron Red, and Alarm.
• The integrated lithium-ion battery provides approximately 7 hours of operation.
• The enclosure has an IP67 rating for protection against dust and water exposure.
• The stated human detection range is 1,300 meters.

With direct controls, image and video capture, wireless app connectivity, and a rechargeable power system, the Blaze Trek 325 is built for users who want portable thermal viewing with useful onboard documentation features.
