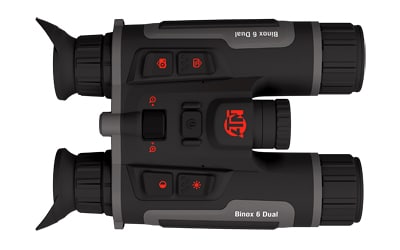

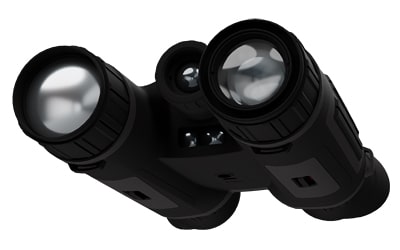

ATN Binox 6 Dual 384 Thermal Binoculars with LRF

The ATN Binox 6 Dual combines thermal imaging with 4K UHD day and night viewing in one multispectral binocular platform. Its 384x288 thermal sensor, twilight mode, integrated recording, and laser rangefinder support observation across changing light and environmental conditions.

The binoculars provide thermal, day, night, and twilight viewing modes, along with digital zoom, selectable thermal palettes, built-in storage, and USB Type-C connectivity. A tripod mount, replaceable rechargeable batteries, and IP67 protection support practical field use.

Key Specifications

• The thermal detector uses a 384x288 uncooled VOx focal plane array with a 50 Hz refresh rate.
• The thermal lens system measures 35 mm at F/0.9 and provides a 7.53° × 5.65° field of view.
• The digital viewing channel uses a 3840x2160 4K UHD CMOS sensor.
• The system includes thermal, day, night, and twilight viewing modes.
• The integrated laser rangefinder measures distances up to 1,000 meters with ±1 meter accuracy.
• The rangefinder uses a 905 nm Class 1 eye-safe laser.
• The display is a 0.49-inch OLED with 1920x1080 resolution.
• The binoculars include 64 GB of internal storage for image and video recording.
• Power comes from two replaceable 18650 rechargeable batteries with approximately eight hours of battery life.
• The housing is made from magnesium alloy and rated IP67 for water and dust protection.

With integrated thermal, digital, and low-light viewing in a single platform, the Binox 6 Dual is suited to users who need adaptable observation and ranging capabilities without carrying separate optical systems. Its recording features, onboard sensors, wireless connectivity, and tripod compatibility add flexibility for field observation and documentation.
