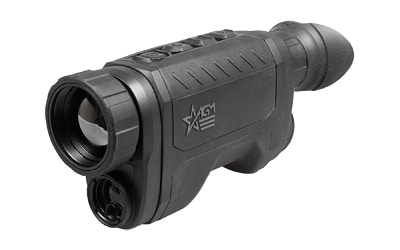

AGM ReachIR LRF 35-640 Thermal Monocular 640×512 50Hz

The AGM Global Vision ReachIR LRF 35-640 is a handheld thermal monocular designed for observation in varied lighting and weather conditions. It combines a 640x512 thermal sensor, 35mm objective lens, 50Hz imaging, and an integrated laser rangefinder in a black housing.

The monocular supports digital magnification, video and audio recording, image capture, and wireless connectivity. Its replaceable rechargeable 18650 lithium battery and built-in memory support extended field use for applications such as hunting, conservation, search and rescue, hiking, and marine observation.

Key Specifications

• The thermal sensor provides 640x512 resolution with 12-micron pixel pitch.
• The imaging system operates at 50 Hz for responsive thermal viewing.
• The 35mm objective lens supports thermal observation through the handheld monocular.
• The optical system offers 2x to 16x magnification through digital zoom.
• The integrated laser rangefinder provides a stated range of 1,000 meters.
• The display is a 1024x768, 0.39-inch OLED panel.
• The thermal sensor has stated sensitivity of sub-20 mK.
• Internal storage provides 64GB of built-in memory for recording and image capture.
• The unit uses a replaceable rechargeable 18650 lithium battery.
• The finish is specified as black matte, with lens caps included.

With thermal imaging, onboard recording, a laser rangefinder, wireless functionality, and a replaceable battery, the ReachIR LRF 35-640 provides a practical observation platform for users who need detailed field viewing in a compact handheld format.
