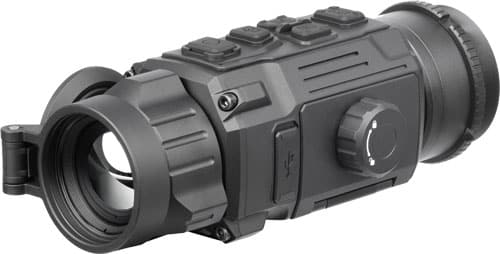

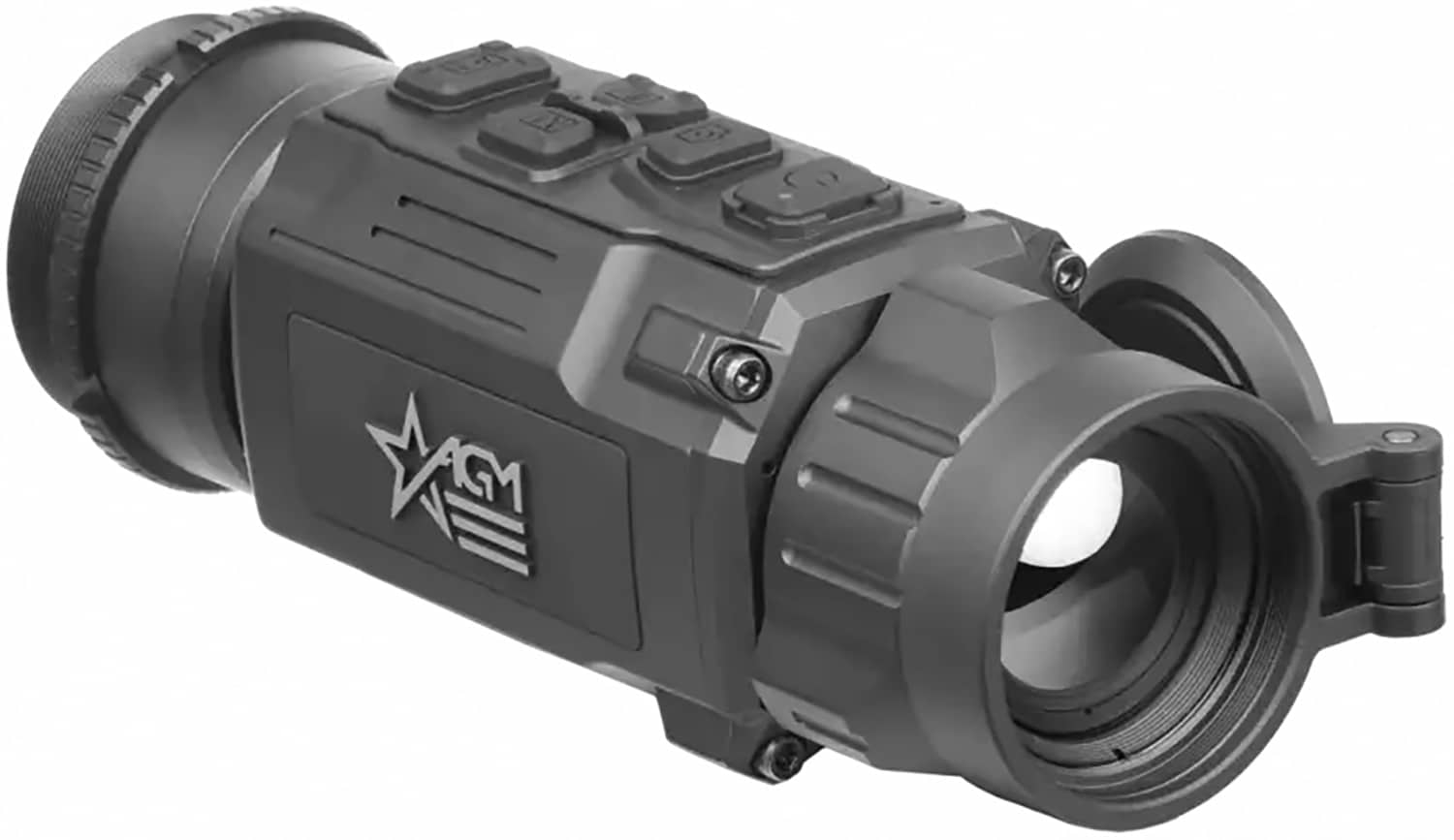

AGM Rattler-C V2 35-384 Thermal Clip-On 35mm 384×288

The AGM Global Vision Rattler-C V2 35-384 is a thermal clip-on system designed to attach in front of a daytime optic without special tools or equipment. It uses a 12-micron detector with 384x288 resolution, 1x magnification, and a 50 Hz refresh rate for thermal imaging in challenging environmental conditions.

The unit supports adjustable color palettes, onboard image and video recording, Wi-Fi data transmission, and a stadiametric rangefinder. Its rechargeable Li-ion battery system provides up to 11 hours of operation according to the listed specifications.

Key Specifications

• The detector uses a 12-micron VOx uncooled focal plane array.
• The thermal resolution is 384x288 with a 50 Hz refresh rate.
• The objective measures 35mm.
• The device provides 1x magnification.
• The field of view is 7.50 x 5.60 degrees.
• The listed focus range is 2mm to infinity.
• The rechargeable Li-ion battery provides up to 11 hours of battery life.
• The unit includes 16GB built-in EMMC storage for image and video recording.
• The listed weight is 1.19 pounds.
• The package includes a mount, two rechargeable batteries, charger, USB cable, lens cloth, manual, and carrying case.

With its compact clip-on format, onboard recording, wireless connectivity, and rechargeable power system, the Rattler-C V2 35-384 provides a versatile thermal imaging option for users who want to adapt existing daytime optics to thermal observation.
