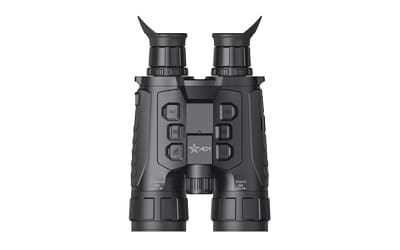

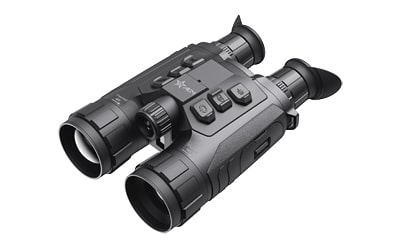

AGM ObservIR LRF 50-640 Thermal Binocular

The AGM ObservIR LRF is a dual-spectrum optical device combining thermal imaging with digital day/night viewing. Its integrated laser rangefinder, GPS, recording functions, and wireless connectivity support observation, documentation, and field data collection.

The thermal channel uses a high-sensitivity 12-micron detector with 640×512 resolution and 3x–24x magnification. The digital channel uses a 3840×2160 ultra-low-light CMOS sensor, while the 1920×1080 OLED display presents image data through a rugged, IP67-rated housing.

Key Specifications

• The thermal sensor provides 640×512 resolution for thermal imaging.
• The detector uses a high-sensitivity 12-micron design.
• Thermal magnification ranges from 3x to 24x.
• The digital day/night channel uses a 3840×2160 ultra-low-light CMOS sensor.
• The integrated rangefinder measures distances up to 1,000 meters.
• The display is a 1920×1080, 0.49-inch OLED.
• Internal storage provides 64GB of eMMC memory.
• The unit includes Wi-Fi hotspot capability, GPS, and a digital magnetic compass.
• The housing is rated IP67 waterproof and dustproof.
• Continuous operation is rated for up to 8 hours on removable rechargeable 18650 batteries.

With thermal and digital viewing in one platform, the ObservIR LRF provides a versatile set of observation and recording tools. Its integrated navigation, ranging, connectivity, and external power features make it a capable option for users who need detailed visual information across changing conditions.
